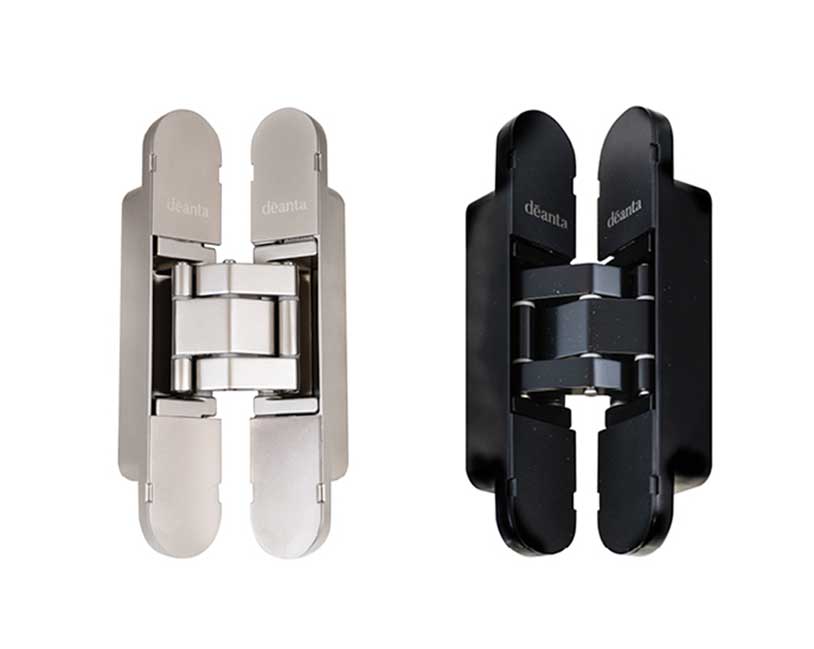

CONCEALED DOOR HINGES

PRODUCT CODES

LHH420 Satin Nickle
LHH421 Matt Black

PRODUCT FEATURES

Max weight 40kg
Material: Zinc alloy
3-D adjustability : vertical ±3mm, horizontal ±2mm and depth ±1 mm
Min. door thickness: 40mm and Max. door width: 1000mm.
Cover hides all screw heads for clean appearance.
Package includes: SUS201 mounting screws in Ø5x30mm (8pcs) Standard inner hexagon spanner, 4mm (1pc) Covers (8pcs)

TECHNICAL

130mm(lenght) x 42mm(width) x 25mm(Depth)
