SLIDING ARM DOOR CLOSER

PRODUCT CODES

LHH613S
LHH613B

FEATURES

+ EN 1154, Certifire-CF5778, EN 1634, CE Marked,
+ Power: En3,
+ Door weight: 40-65kgs,
+ Max door width: 1200mm
+ Footprint: 50 X 50 X 43mm,
+ Cover included,

TESTING

+ EN 1154 and CE marked

FINISHES AVAILABLE

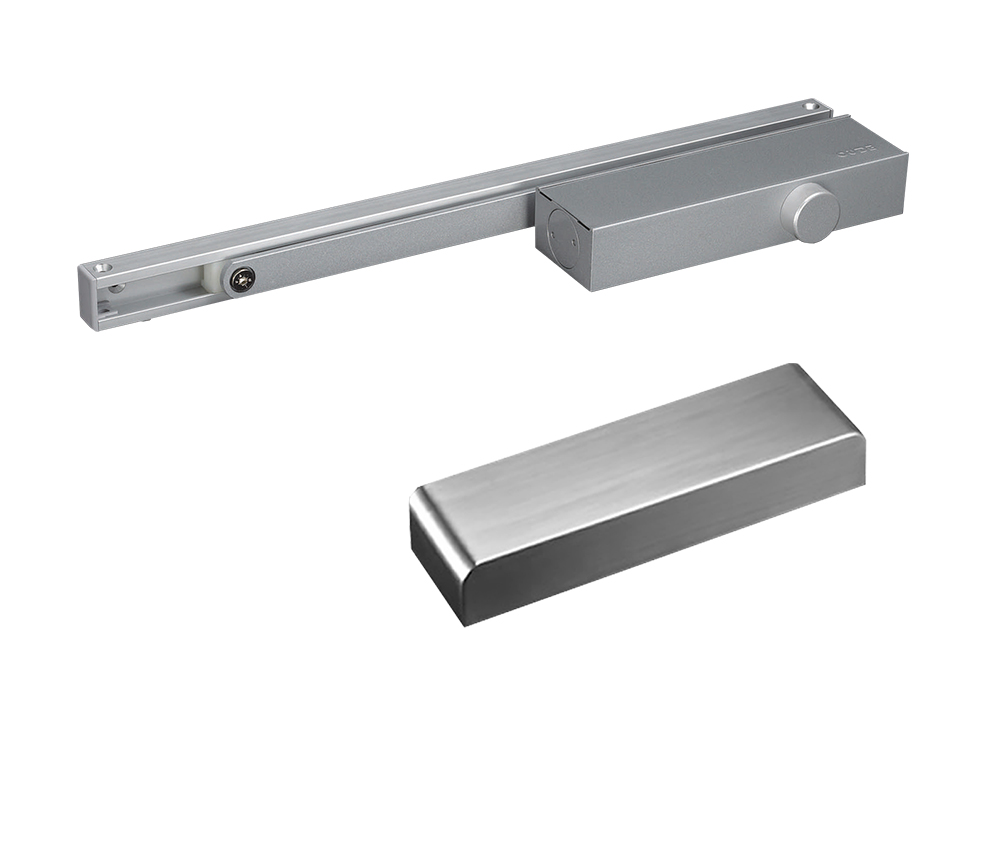

+ Satin Silver

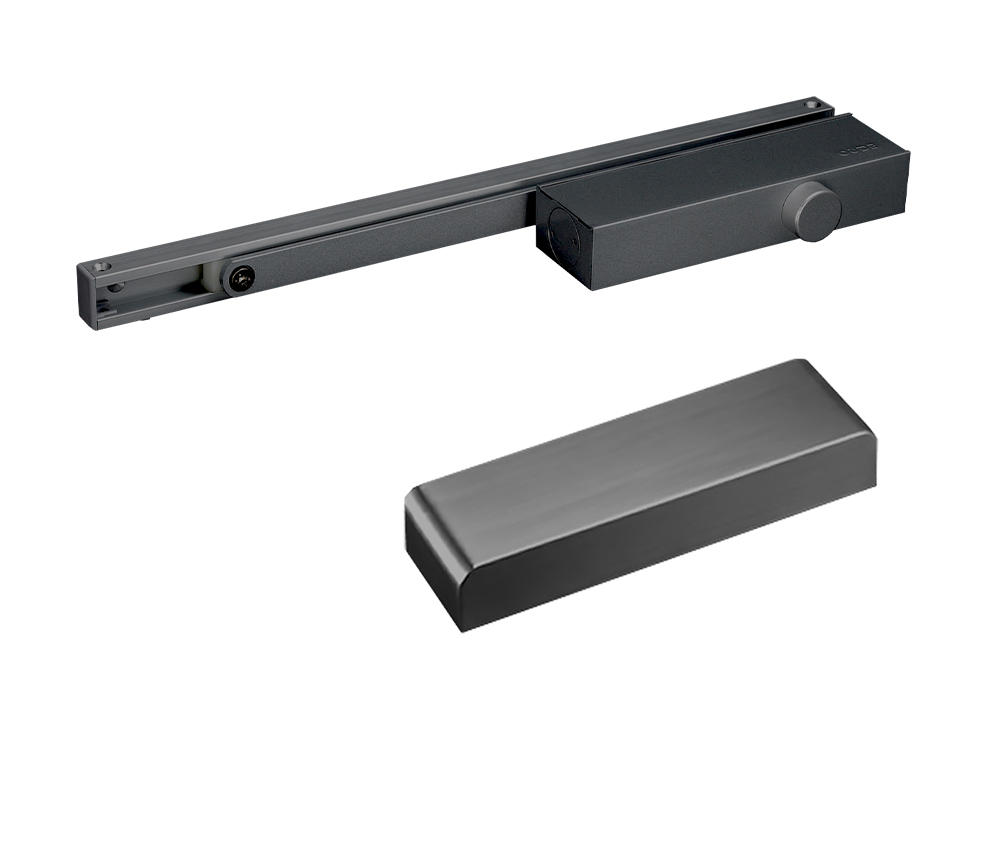

+ Black

STANDARDS

TECHNICAL

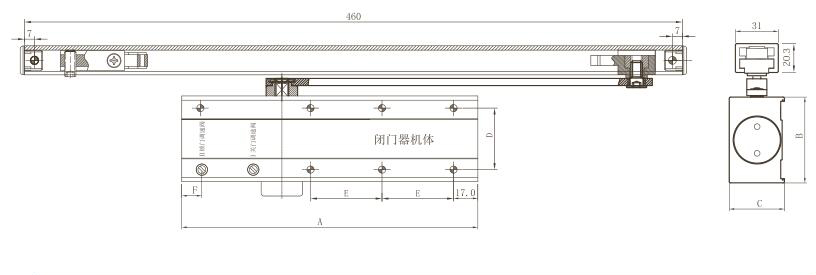

DIMENSIONS

A-236mm
B-60mm
C-38.5mm
D-43mm
E-50mm
F-14mm
